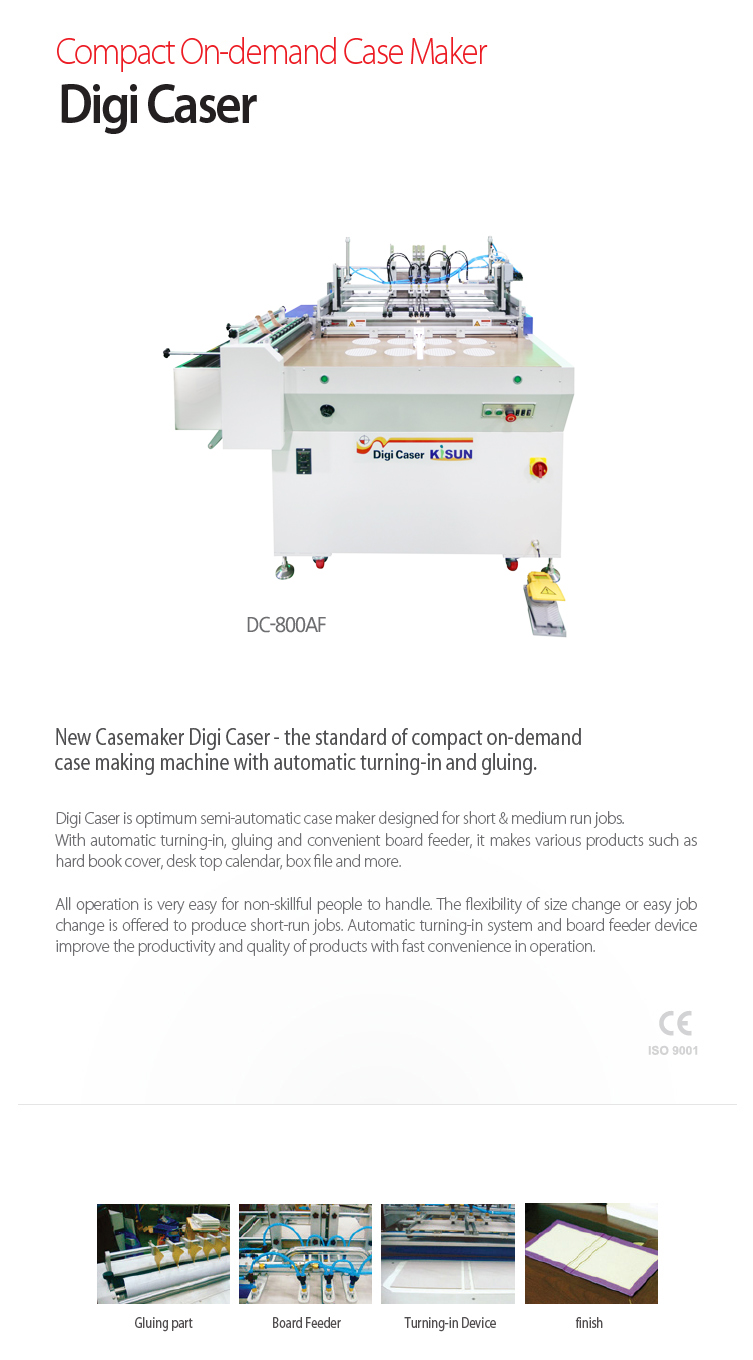

companc on demand case maker

Production speed Approx. 150covera/hour(variable upon the size)
Paper Gluing width Max. 450mm
Type of Glue Cold or Hot
Glue tank capacity 12 liter
Max. board feeding size 810 x 380mm
Min. board feeding size 150 x 150mm
Thickness of board material min. 1.8mm and max. 3mm
Board pile height max.300mm
Max. case making size 810 x 380mm
Min. Case macking size 150 x 150mm
Minium turning-in flap size 15mm
Air consumption 0.6Mpa = 6 bar
Power consumption 220V, 3Kw, 15Amp
Machine dimension L 1500 x W 1300 x H 1300mm
Machine Weight 450Kg
