Digi Compact Coater | PRODUCTS | KISUN

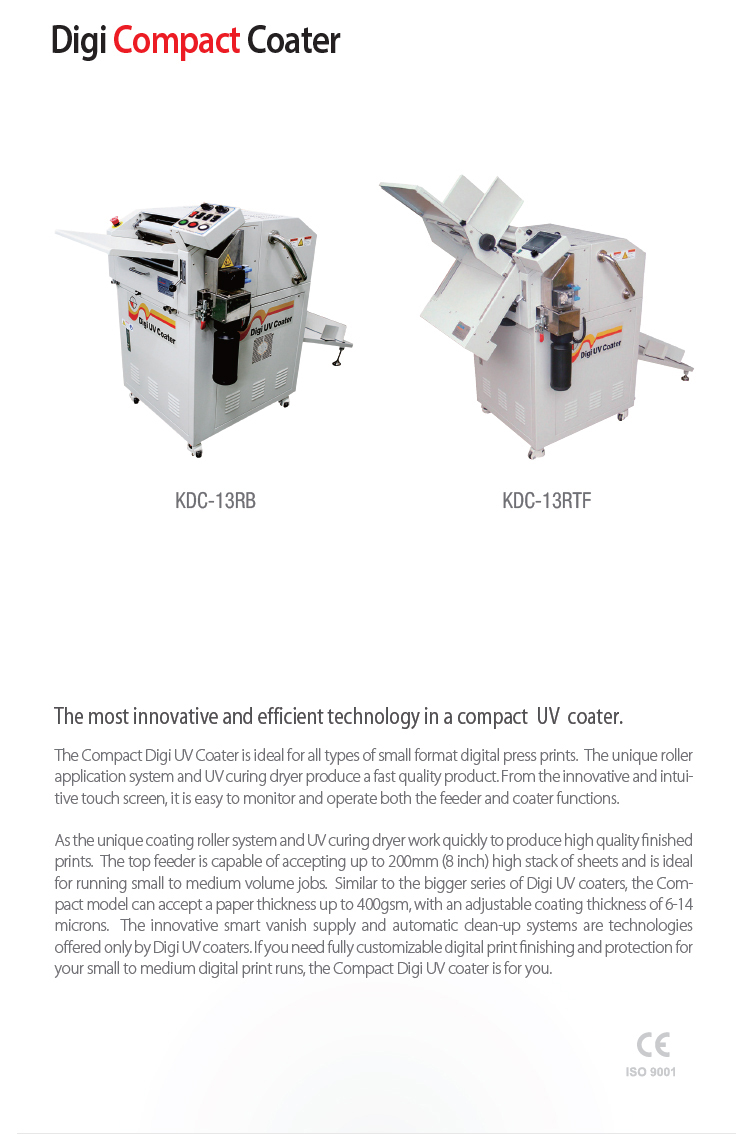

digi compact coater

Coating Thickness: Variable from 6 to 14Microns
Maximum coating material weight: 400gsm
Coating technology UV coating 100% curable and Heater.
Coater/Curing unit Integrated one unit with concealed conveyor path.
Speed 30 ~ 35 meter per minutes
Coating size(width) 13inch(330mm)
Coating varnish Glossy, Matte, Luster
Coating pattern Smooth or textured (roller changeable)
Power consumption 8KW
Power Supply 210 ~ 240V, 50/60Hz, Single Phase or 380 ~ 415V, 50/60Hz, Three Phase.
Dimensions(L x W x H mm) 710 (28”) x 610 (24”) x 1060 (42”) mm
Option Automatic pile feeder.(13 RTF)
Auto Feeder Stack Pile Height Max. 200mm(8”)
